Prefabricated Modular Expandable Container Houses with Bedroom
Exterior Wall Panels
Wainscoting

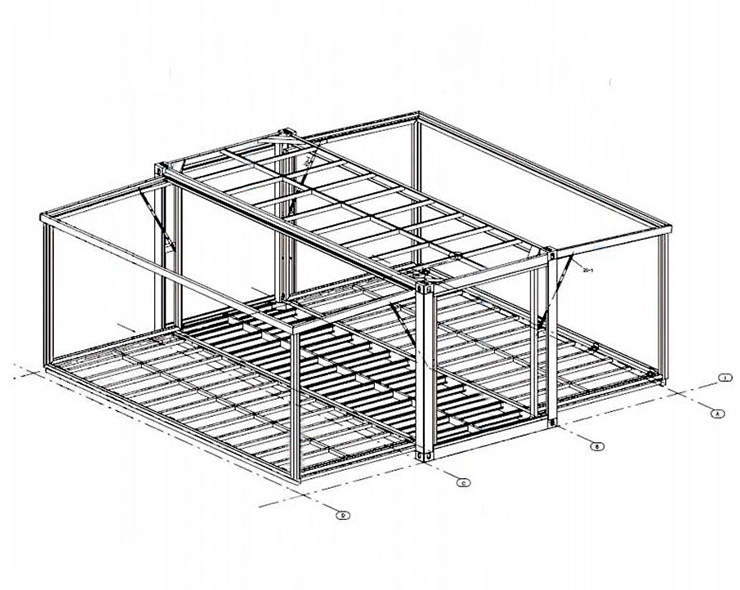

The most distinctive feature of the Mobile Expandable Container House is its unique double-wing structure that facilitates expandability. This innovative design ensures that the steel house remains compact and portable while offering flexible spatial expansion based on actual requirements. Suitable for both short-term temporary accommodation needs, such as construction sites and disaster relief operations, and long-term residential purposes, including tourist camps and small communities, this type of expandable tiny home demonstrates remarkable versatility.
Main material | Galvanized steel structure with sandwich wall panel and doors, windows, etc. |
Weight | 2000-5500 kgs |
Color | White, blue, grey, brown, customized color, or adding colorful cladding |
Steel structure | 2.5 mm hot galvanized steel structure with 4mm corner casts and in the middle and 15mm laminate board on both sides; (1) Floor: 18mm MgO board |
Columns | 2.5 mm hot galvanized steel structure |
Wall | 75mm EPS/rock woll sandwich panel, or customized PU sandwich panel |
Roof | 3-4mm Hot galvanized steel structure with 4 corner casts and(1) Galvanized steel roof covering; |
Door | (1) Steel door (2) Aluminum double glass door |
Window | 920*920mm, double glass (1) Plastic steel window (2) Aluminum double glass window (3) Cut-bridge aluminum double glass window |
Connection kits | PVC Connection kits for ceiling, floor and walls. |
Optional Accessories | Furniture, kitchen (including cabinet and sink, bathroom (including toilet, washing basin, mirror, shower room), electrical |
Advantage | (1) Fast installation: 2 hours/set, save labor cost; (2) Anti-rust: all material use hot glavanized steel; |

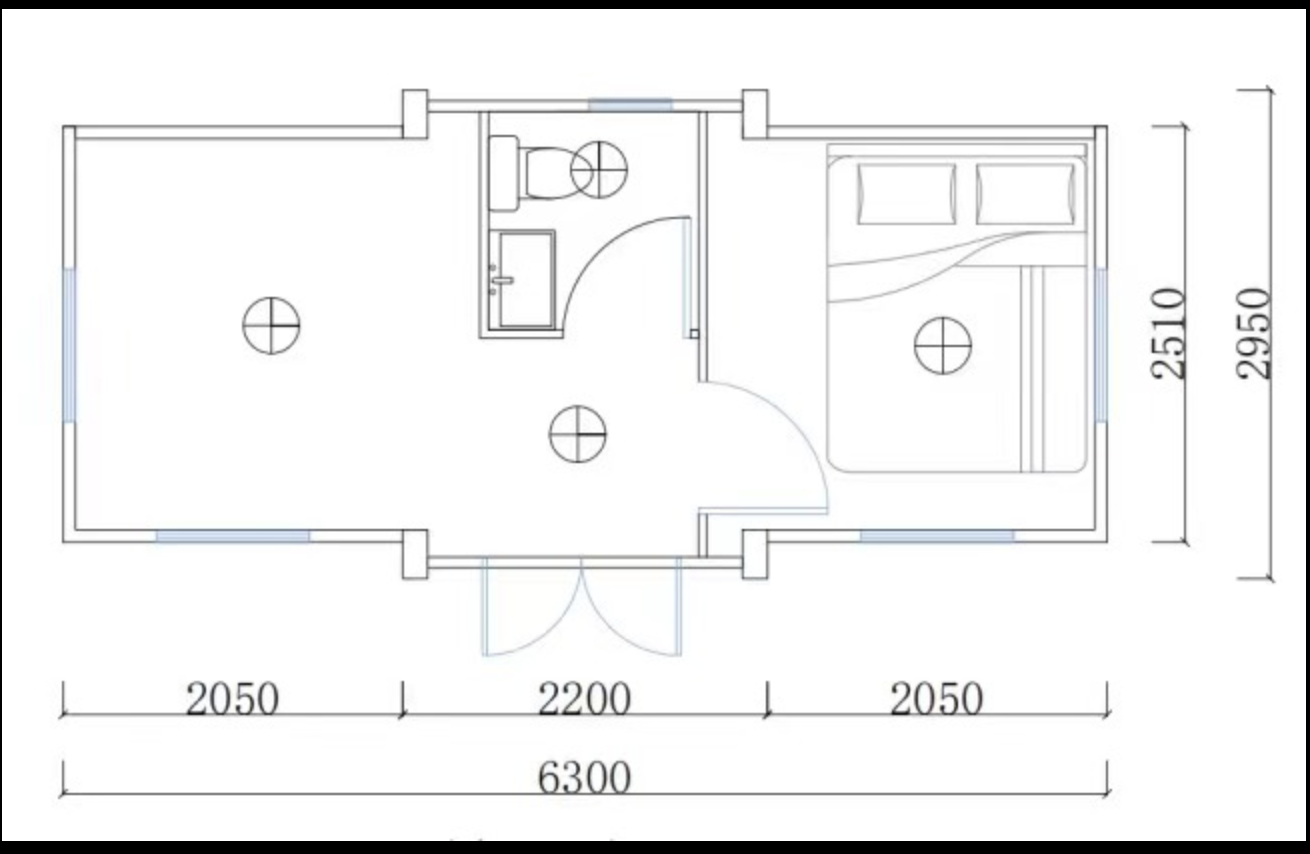

Product Specification | Expanded Dimensions | Internal Dimensions | Folding dimensions | Occupied area |
10ft | L2950*W6300*H2480 | L2510*W6140*H2240 | L2950*W2200*H2480 | 18.5m² |
20ft | L5900*W6300*H2480 | L5460*W6140*H2240 | L5900*W2200*H2480 | 37m² |
30ft | L9000*W6220*H2480 | L8540*W6060*H2240 | L9000*W2200*H2480 | 56m² |
40ft | L11800*W6220*H2480 | L11540*W6060*H2240 | L11800*W2200*H2480 | 72m² |
2.9m (H) is available
| Model | 20ft Expandable Container Home | 30ft Expandable Container Home | 40ft Expandable Container Home |
|---|---|---|---|
| Building Area | 37m² (398 sqft) | 56m² (603 sqft) | 73m² (786 sqft) |
| Expand Size for House | 5.9m (L) * 6.32m (W) * 2.48m (H) or 2.9m (H) | 9m (L) * 6.24m (W) * 2.48m (H) or 2.9m (H) | 11.8m (L) * 6.32m (W) * 2.48m (H) or 2.9m (H) |
| Folding Size for Travels | 5.9m (L) * 2.2m (W) * 2.48m (H) or 2.9m (H) | 9m (L) * 2.2m (W) * 2.48m (H) or 2.9m (H) | 11.8m (L) * 2.2m (W) * 2.48m (H) or 2.9m (H) |

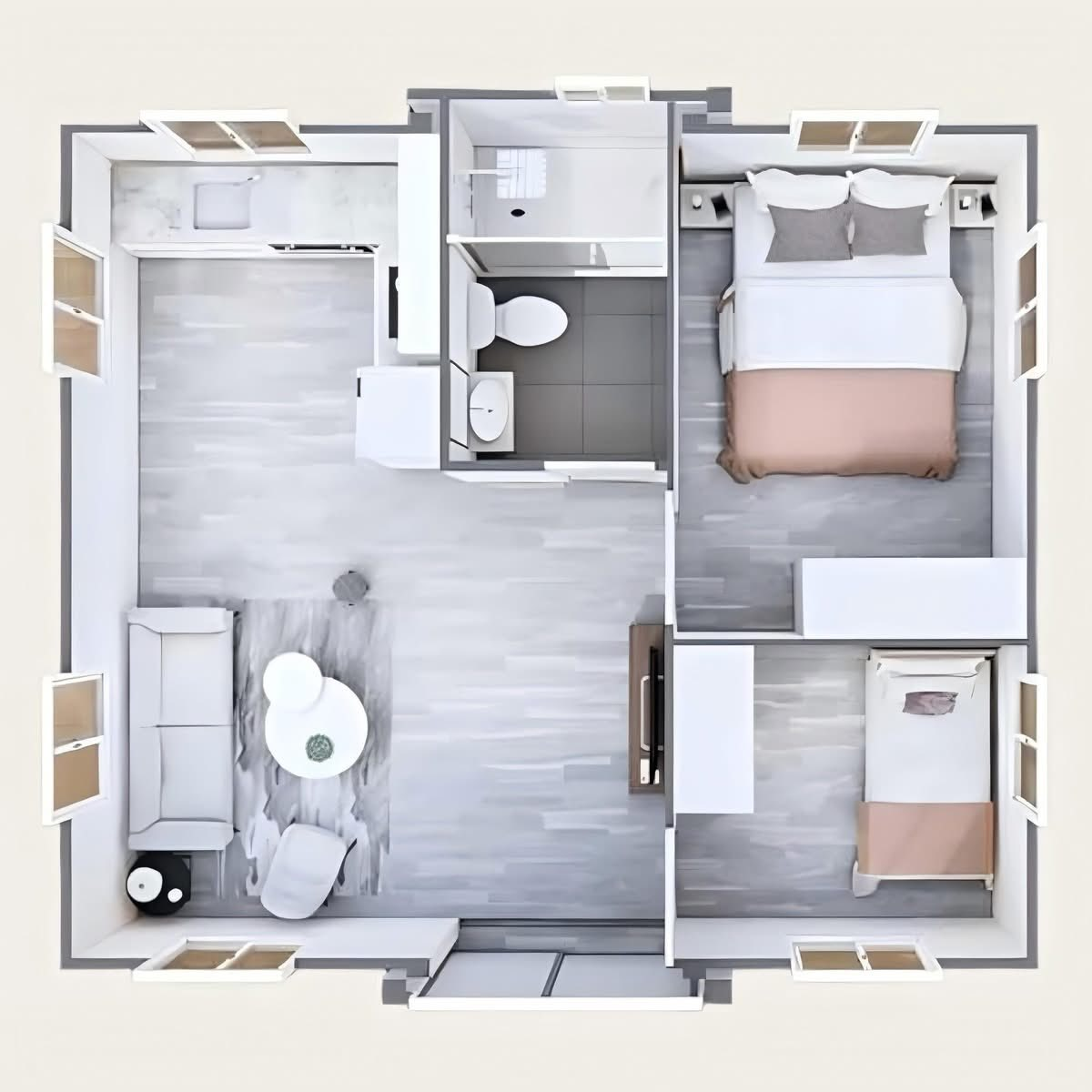

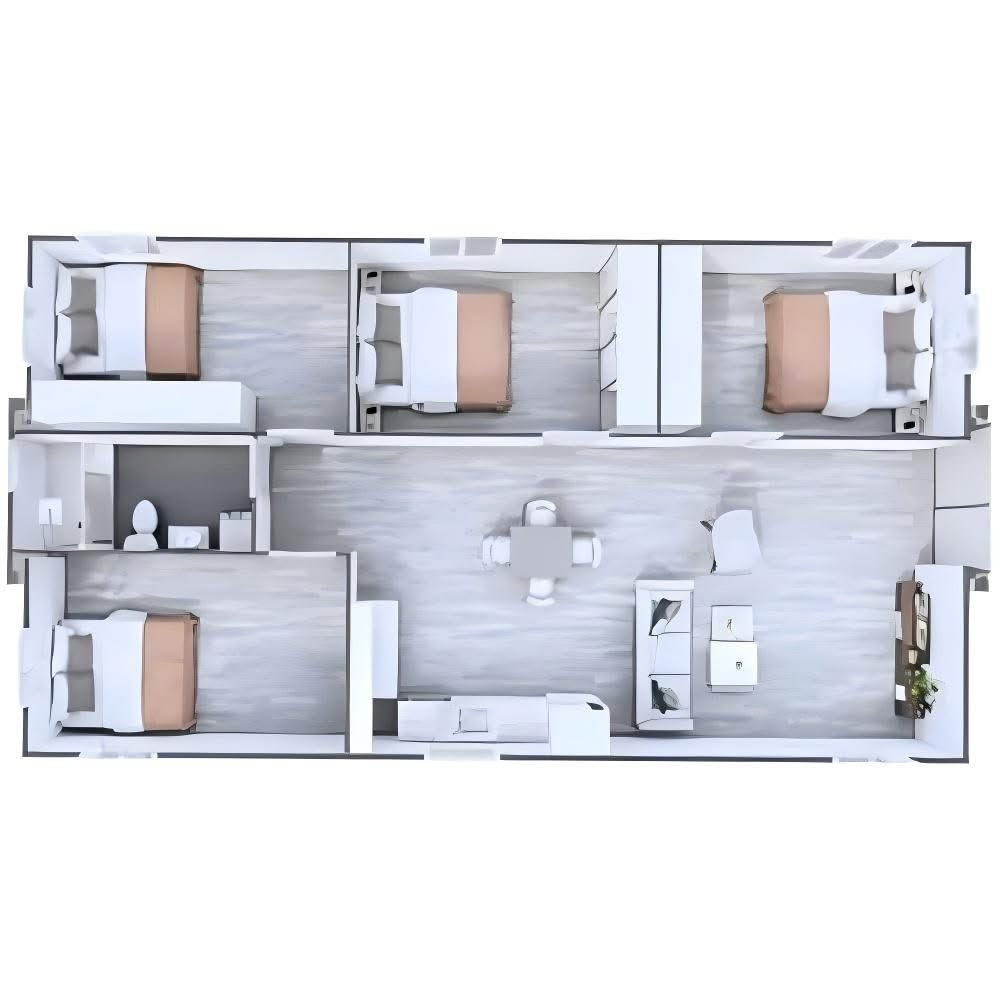

| Internal Layout Plan | 1/2 bedroom, 1 bathroom, 1 kitchen, 1 living room | 1-4 bedroom, 1 bathroom, 1 kitchen, 1 living room | 1-6 bedroom, 1/2 bathroom, 1 kitchen, 1 living room |
| Color | White, Black, Wood brown (customizable colors) | White, Black, Wood brown (customizable colors) | White, Black, Wood brown (customizable colors) |
| Installation | 90% prefabricated at factory, 4-5 people in one day | 90% prefabricated at factory, 4-5 people in one day | 90% prefabricated at factory, 4-5 people in one day |
EASY INSTALL
The extended container house has super convenience:
Other layout can be customized, please contact me for helping
After finishing lifting, move directly from one place to another. Of course, the installation is also time-saving and labor-saving. It only needs 4 people at once, and it can be assembled within 40 minutes.
Features
Our Expandable Container Homes redefine modern modular living with a smart folding design that ensures maximum space efficiency and ease of transport. Delivered in a compact form, these container homes can be expanded on-site within minutes, transforming into a spacious, fully functional living or working area. With weather-resistant steel panels and a sleek finish, the exterior is not only durable but also aesthetically appealing. Perfect for remote projects, emergency shelters, or mobile offices, these expandable container offices are engineered to offer unmatched convenience without compromising on style.
Step inside our foldable expandable container living houses and experience a surprisingly spacious interior that feels just like home. Designed with comfort in mind, the living space allows for flexible configurations—whether it’s a cozy lounge, a dining nook, or a work corner. The insulation materials used ensure a comfortable indoor temperature year-round, while the premium flooring and wall finishes provide a clean and modern ambiance. Every inch of space is thoughtfully planned to maximize usability and enhance your everyday living experience.
The bedroom area in our prefab expandable container folding houses offer a peaceful and private retreat after a long day. Whether used as a temporary living space or a permanent modular home, the room can comfortably fit a double bed and essential furniture. Ventilation windows, optional air conditioning, and customizable lighting create an inviting environment for rest and relaxation. Our design emphasizes both function and tranquility, making it ideal for long-term stays in any location.
The portable expandable container modular houses come equipped with a fully functional kitchen space that supports basic cooking needs. Featuring optional cabinets, sinks, electric outlets, and water lines, this compact kitchenette is both practical and easy to maintain. Whether used in a remote construction site or a countryside getaway, it allows residents to prepare meals comfortably. Additional customization options are available to suit your specific requirements, making each mobile expandable container house a truly adaptable solution.

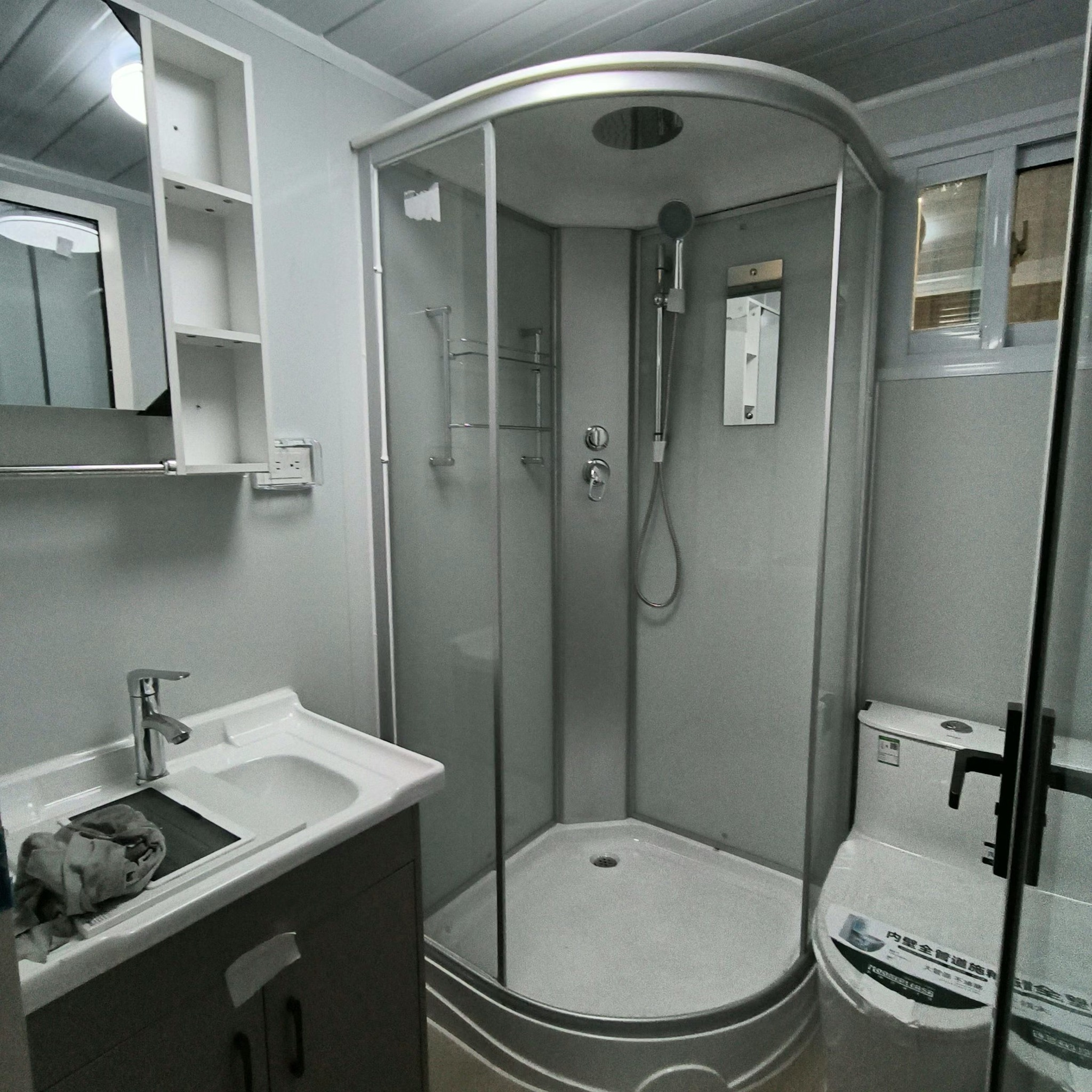

A well-designed bathroom area is one of the highlights of our expandable living room. The space is intelligently laid out with a toilet, shower area, and washbasin—all customizable based on your local requirements. Waterproof panels and anti-slip flooring enhance safety, while efficient plumbing systems ensure smooth functionality even in off-grid locations. It’s a compact, hygienic, and modern bathroom experience inside a mobile living unit.
Our luxury expandable container houses offer extensive customization options to meet diverse project needs. From window and door placements to internal layouts, electrical setups, and exterior finishes—everything can be tailored to suit your vision. Choose from a variety of configurations such as open-plan living, multi-room divisions, or hybrid uses (residential + office). Whether you’re a developer, a contractor, or an adventurer, our modular solutions provide the flexibility and performance to support your lifestyle or business.
One of the most attractive features of our Prefabricated Expandable Container House is the hassle-free installation. Delivered in a folded state, the unit can be set up by a small team within a few hours, with no need for heavy machinery or complex tools. The integrated expansion system enables the walls and roof to unfold easily, instantly increasing the usable area. This plug-and-play setup is ideal for fast deployment in various scenarios such as disaster relief, mobile clinics, temporary offices, and field accommodations.
FAQ:
1. Can the interior layout be customized for 40ft expandable container houses for sale?
Yes, layouts can be tailored to include bedrooms, bathrooms, kitchens, or offices as per customer requirements.
2. What color options are available for 40ft expandable container homes?
The exterior and interior colors can be customized to suit preferences or brand requirements.
3. How are prefab expandable container houses transported?
They are shipped in a folded, compact state and can be easily transported by truck, ship, or rail.
4. How long does it take to install an expandable foldable container house?
Installation usually takes 2-4 hours and requires minimal labor and tools.
5. Do I need a crane for installation?
A crane or forklift may be required for unloading and initial placement, depending on the size and model.

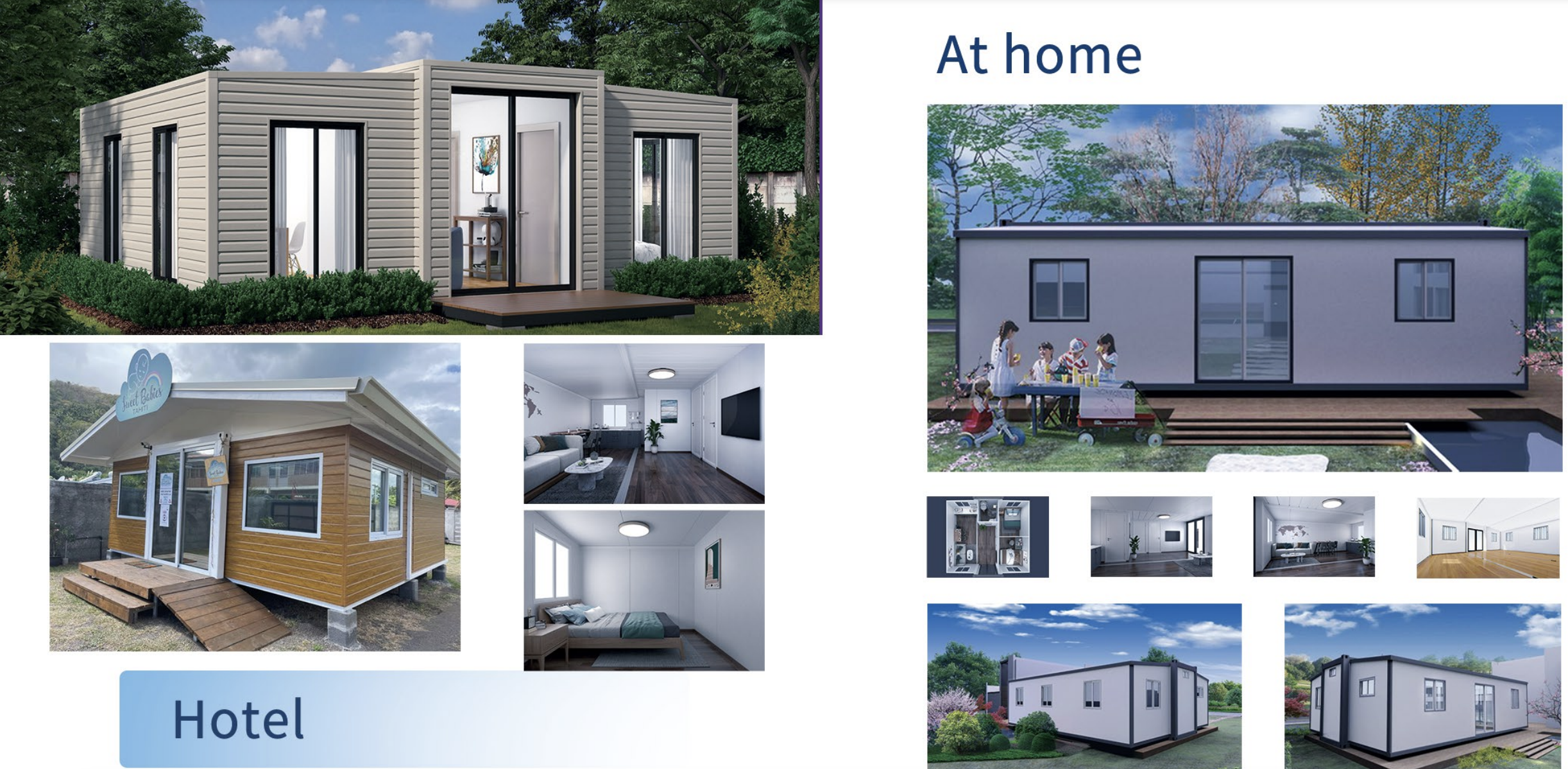

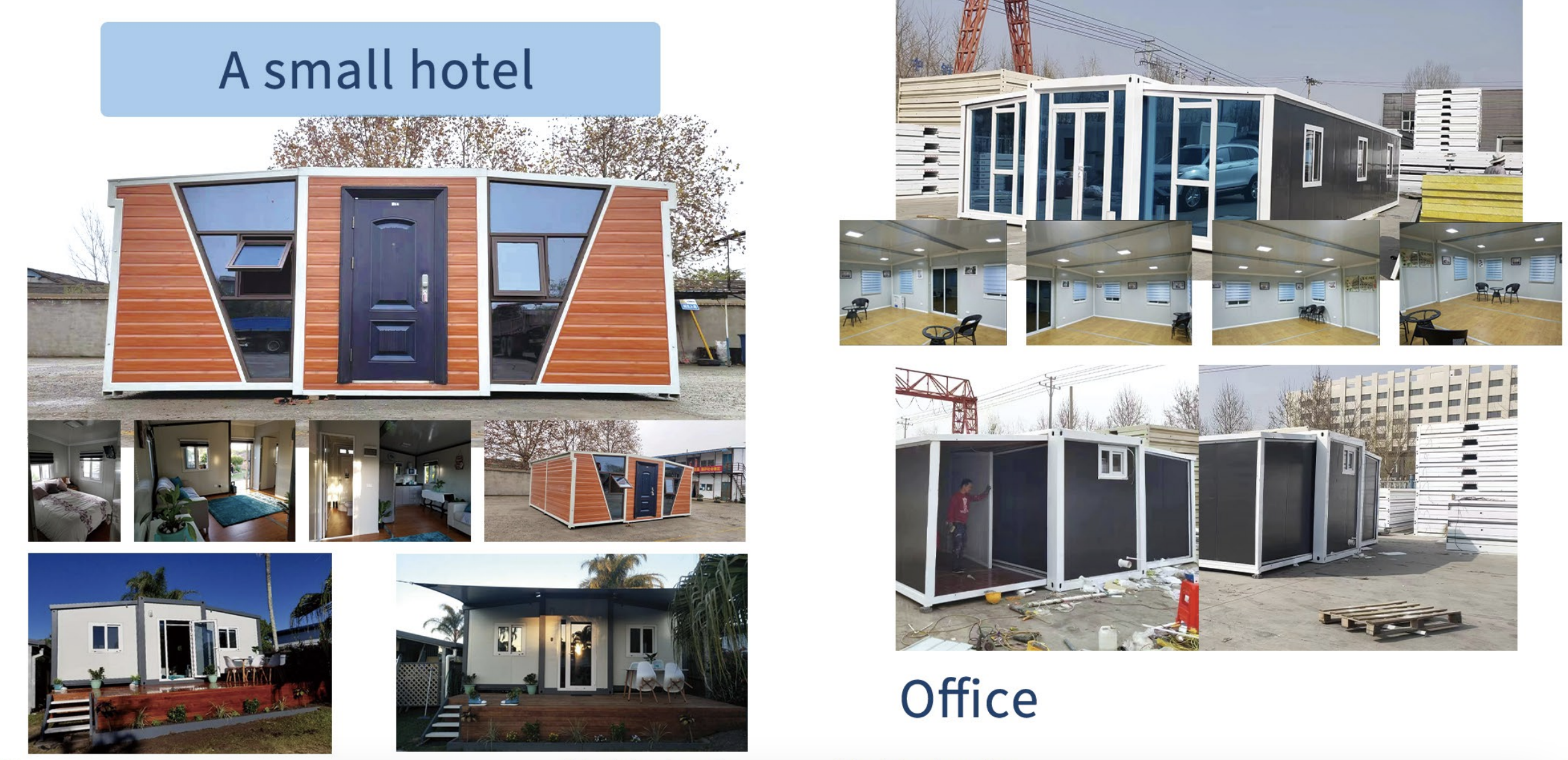

More photos for reference
