Revolutionizing Tourism Accommodation with XC’s E5 Space Capsule 🚀🚀🚀🚀🚀🚀
XC’s E5 Space Capsule is a revolutionary prefabricated mobile house designed for cultural tourism, glamping resorts, and modular living. Built with aviation-grade aluminum and smart systems, it’s ideal for scenic accommodation around the world.

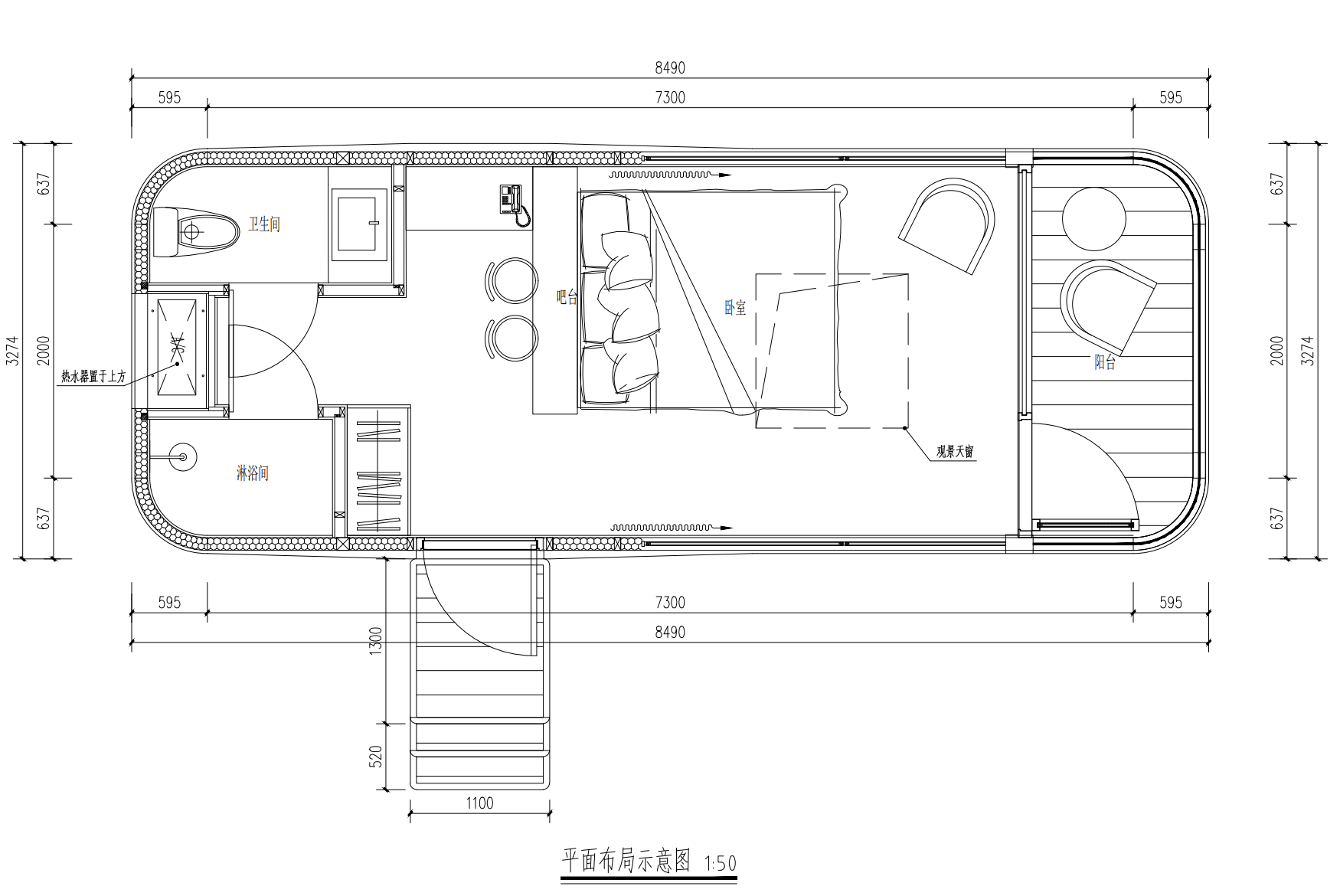

📄 E5 Layout Drawing
PDF Download Available
View PDF
PDF Download Available

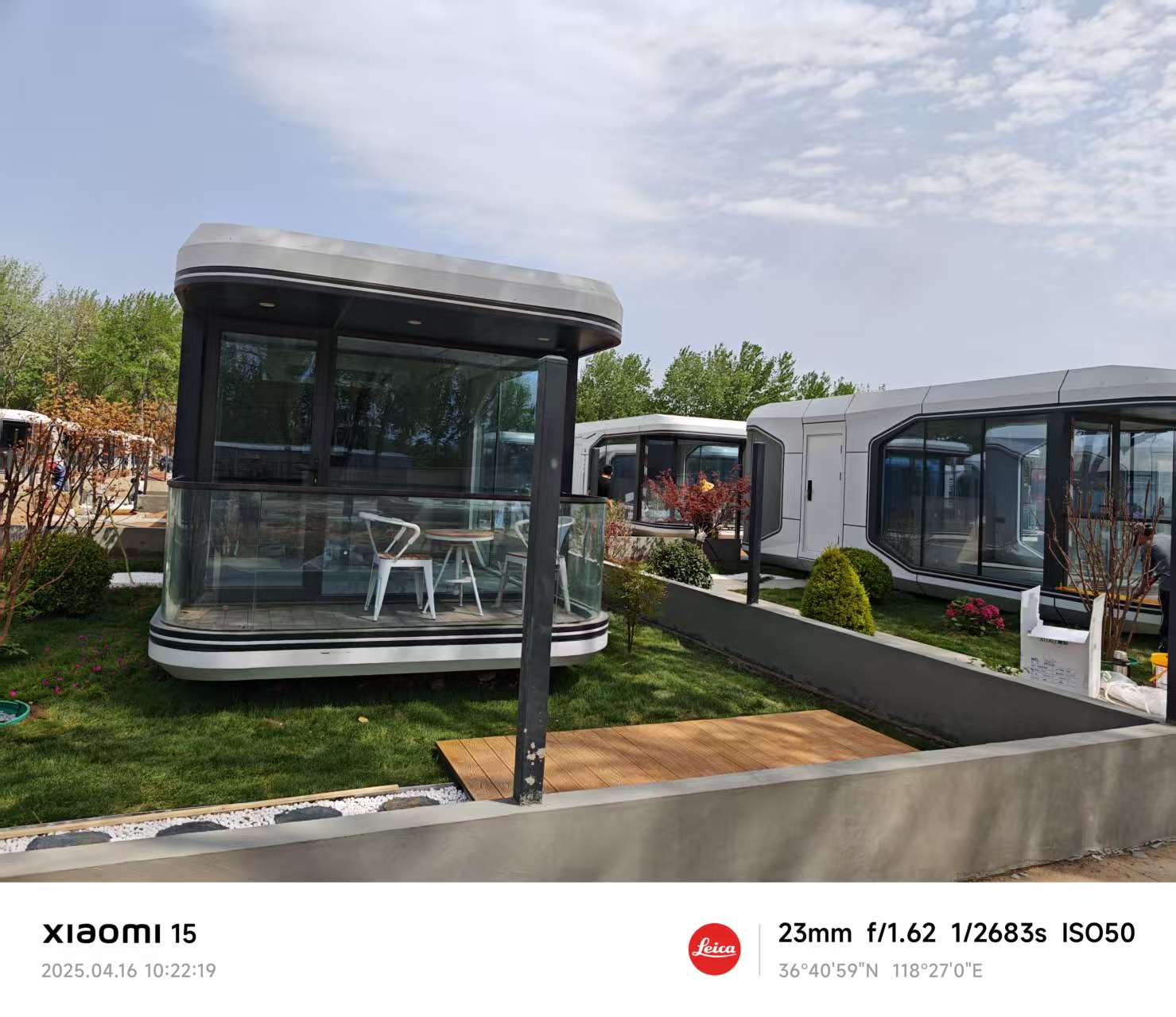

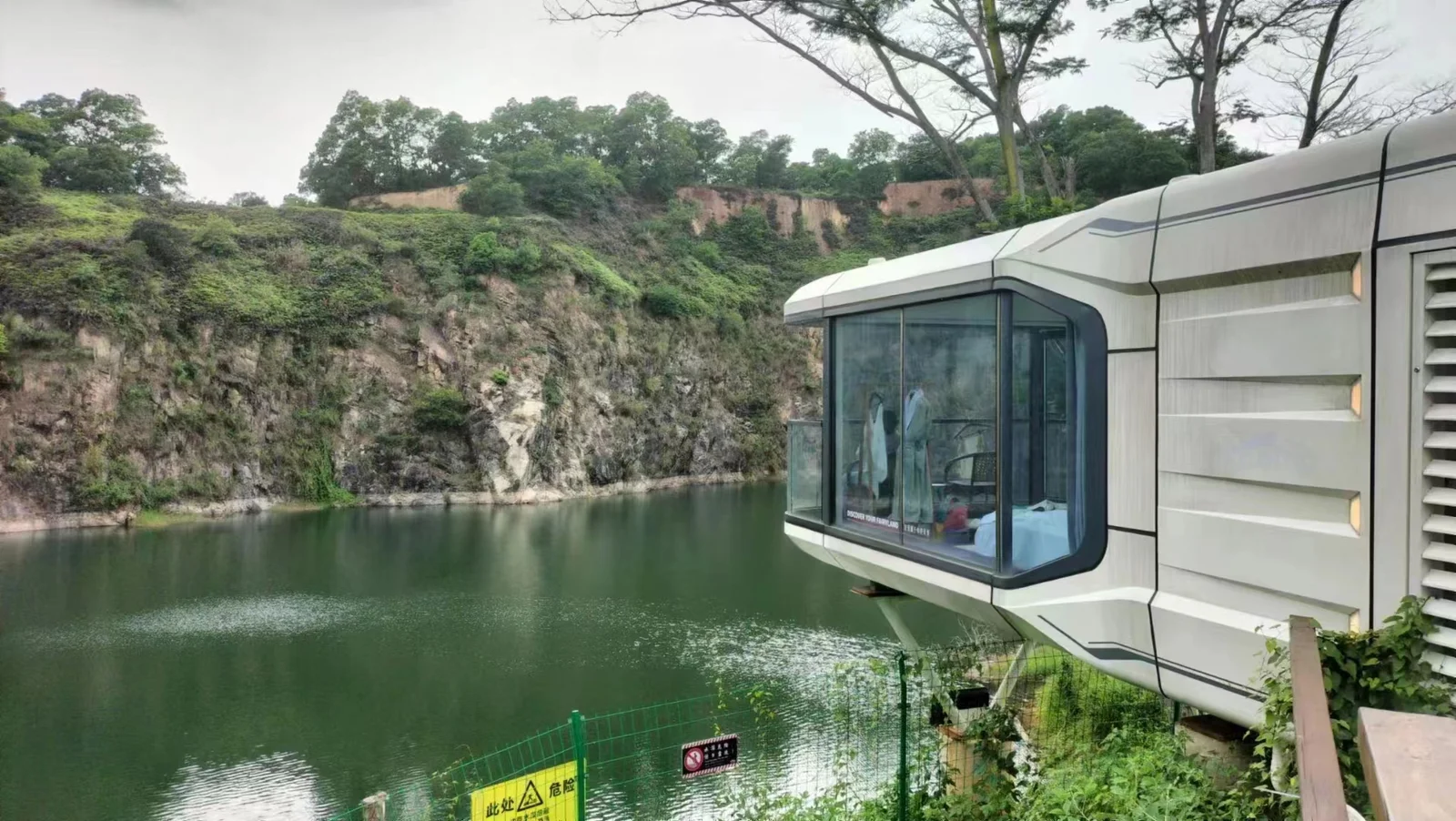

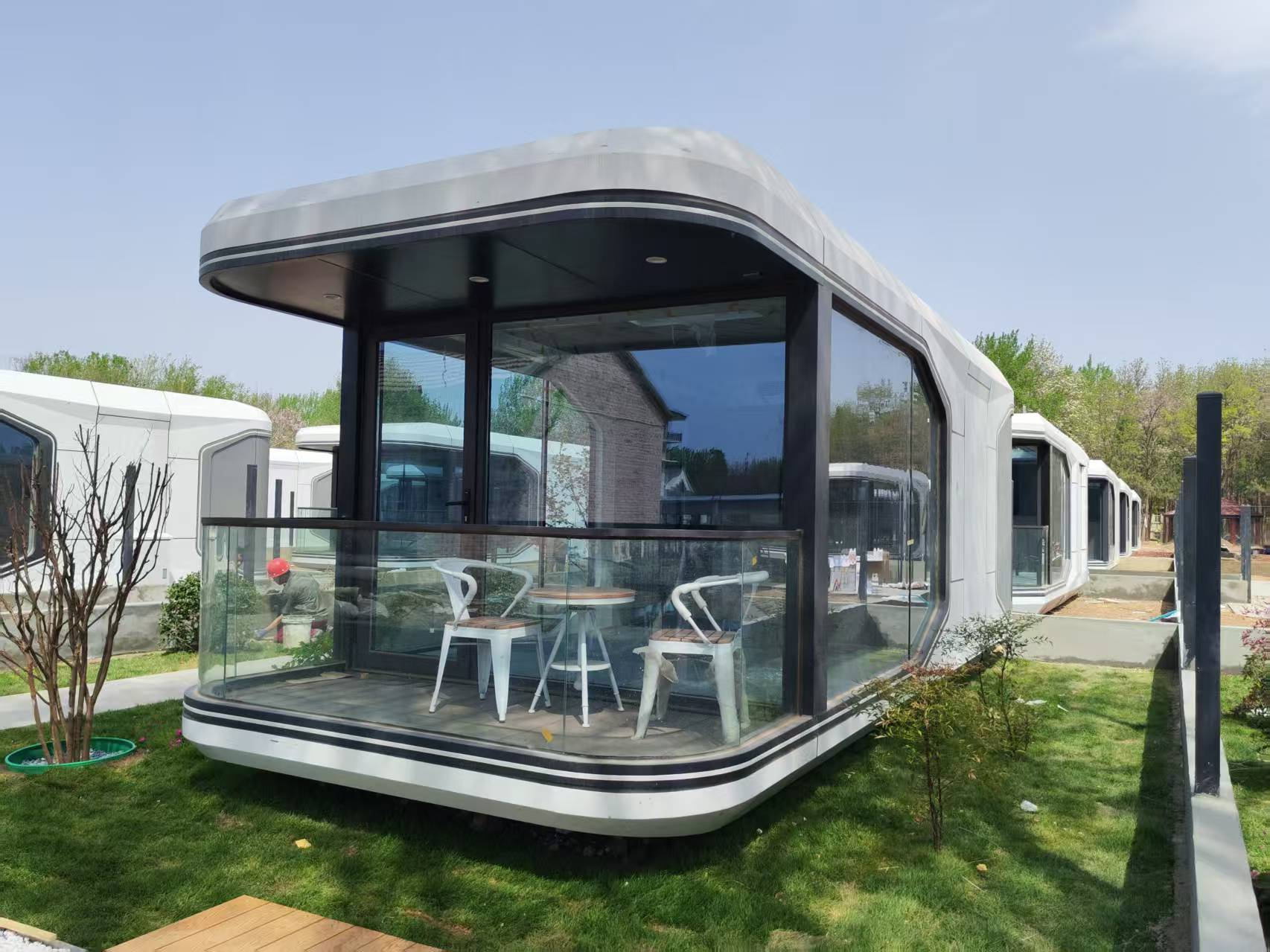

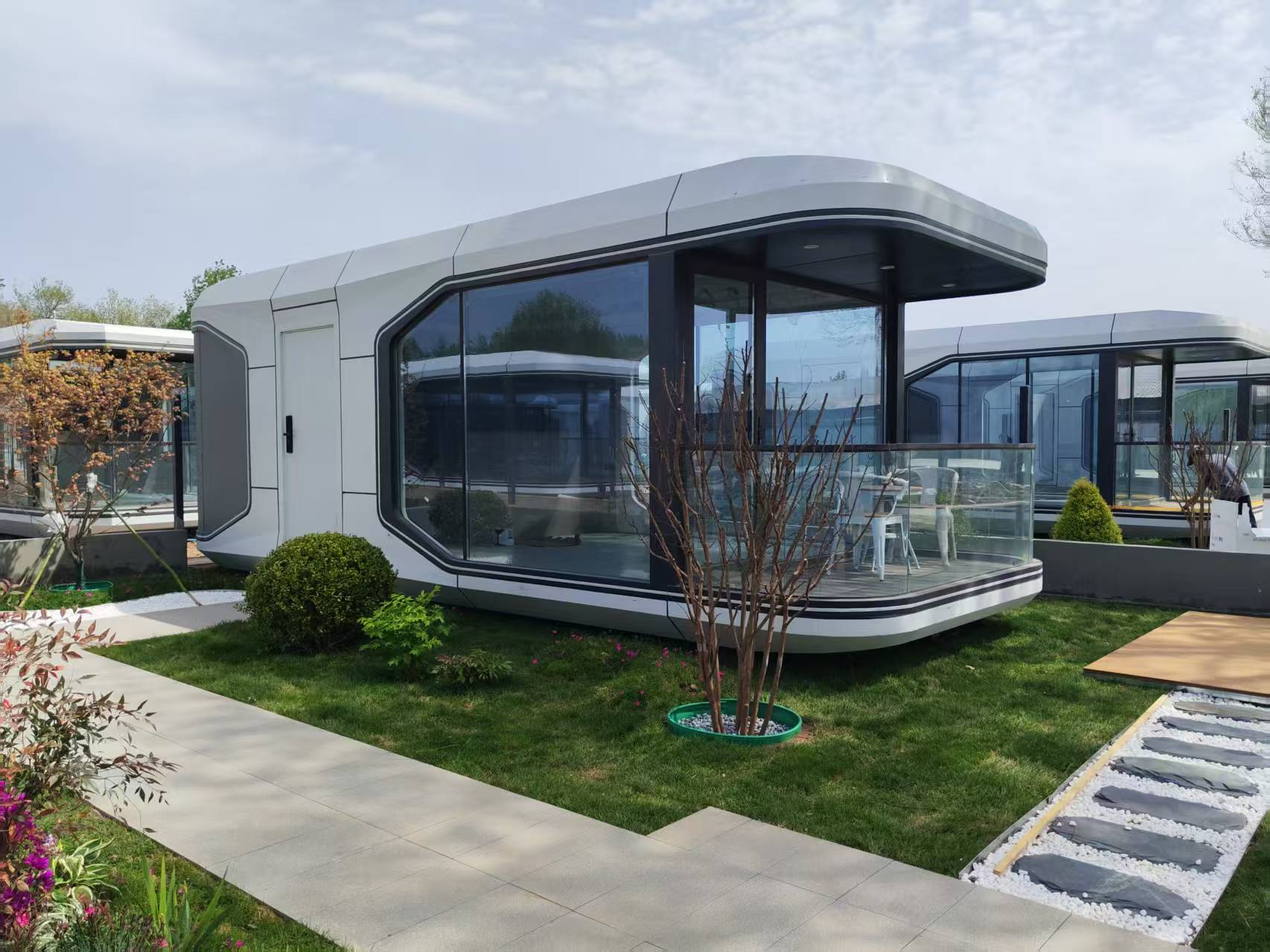

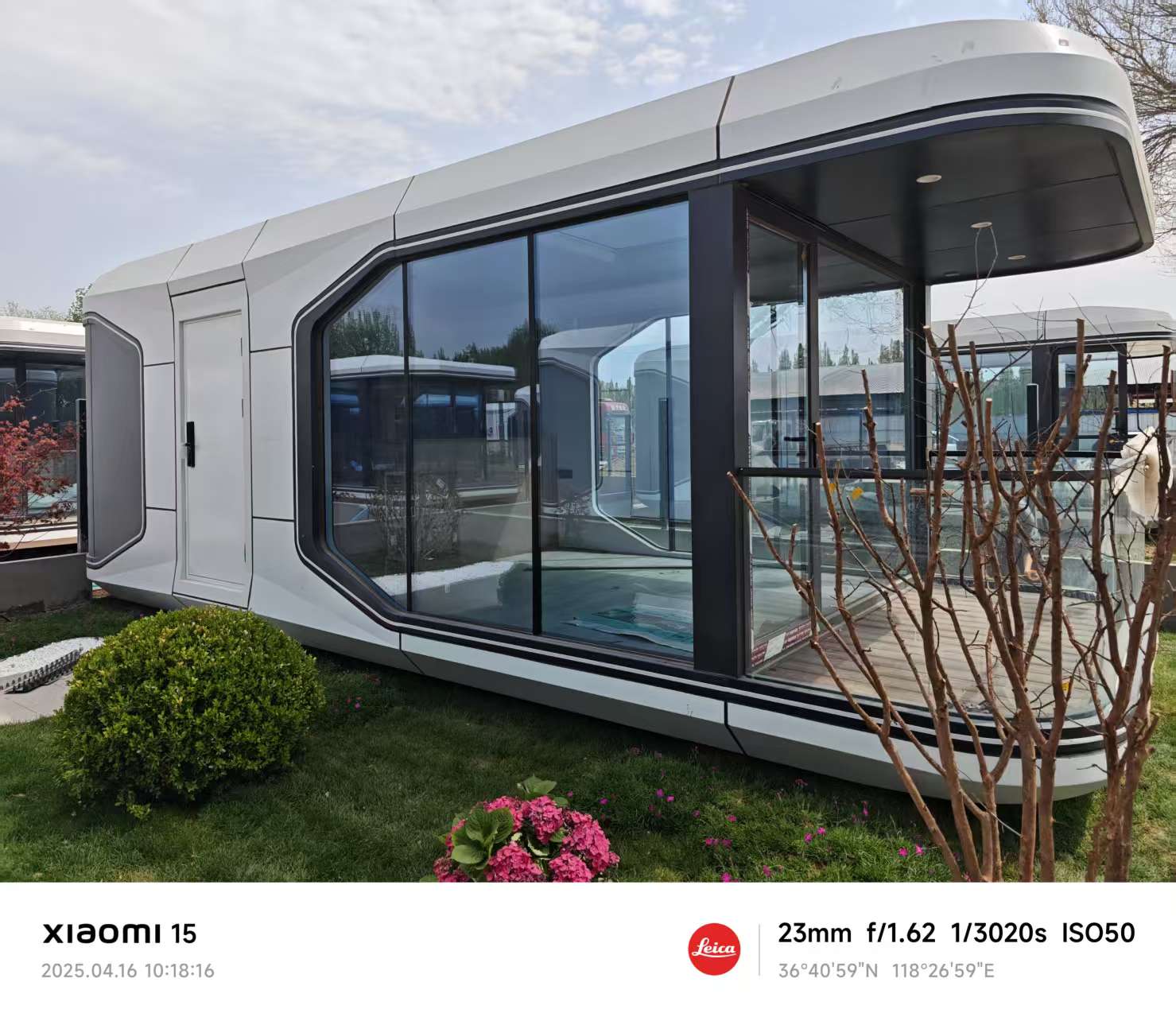

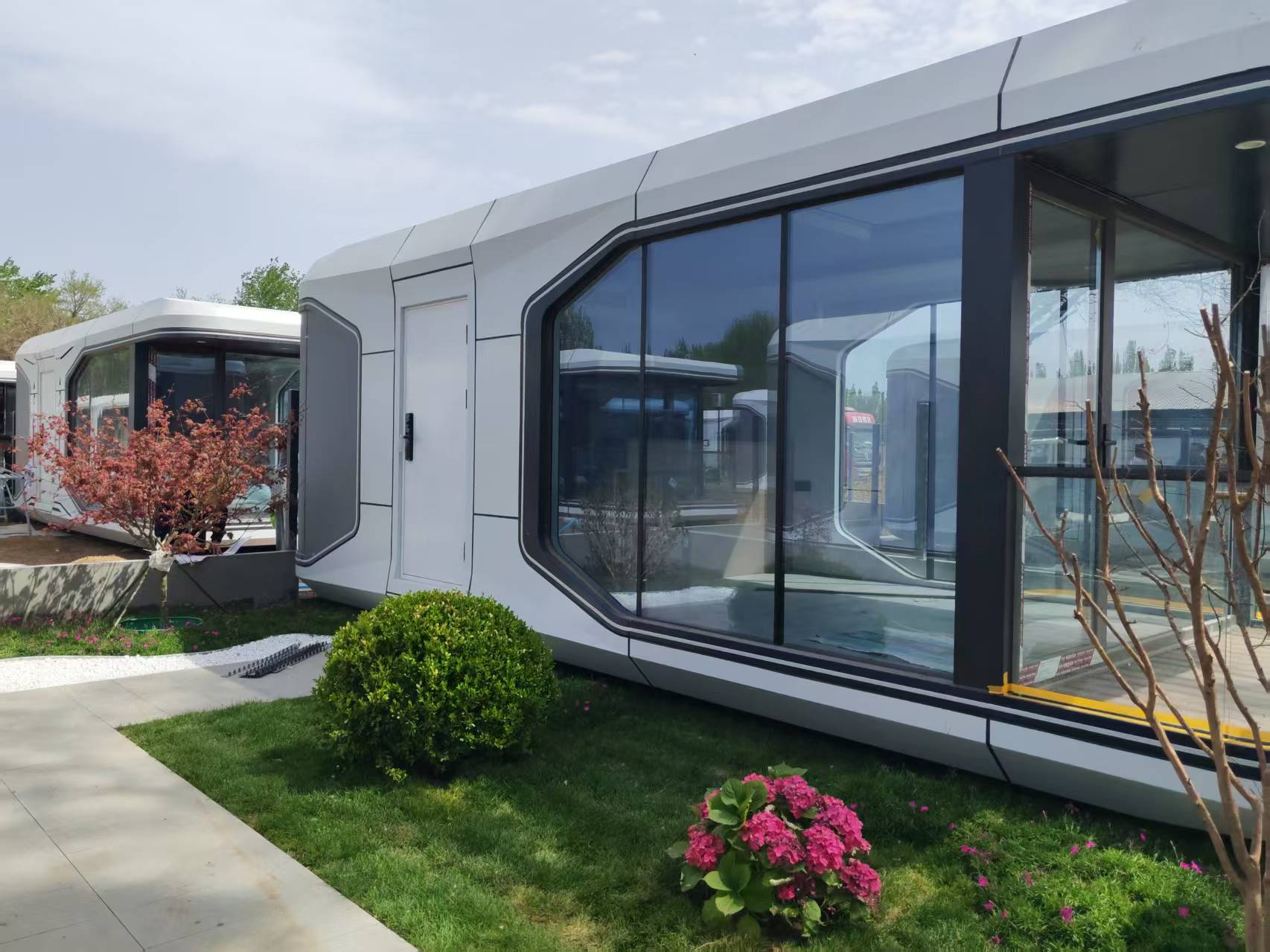

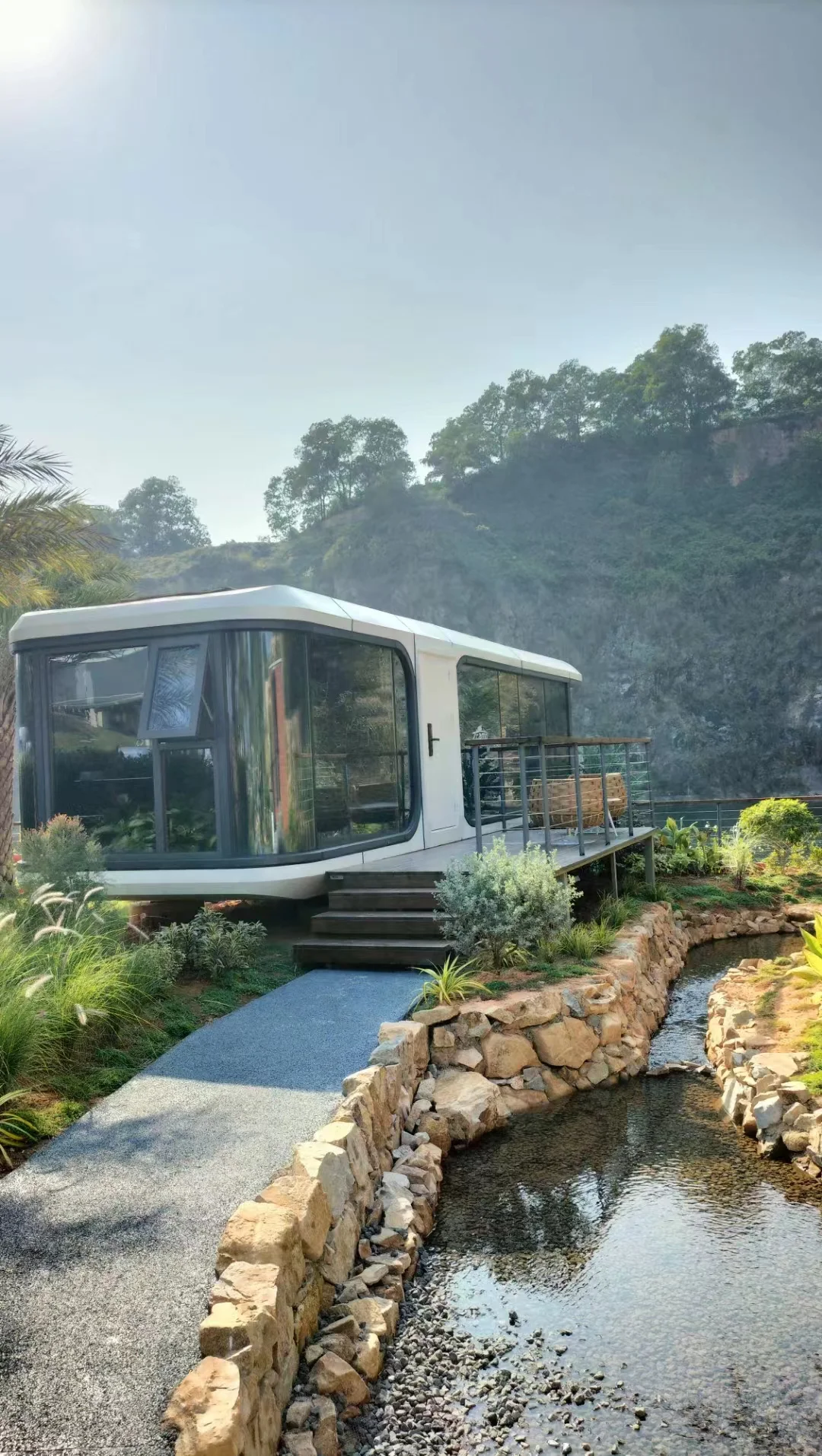

📷 Project Image Gallery
E5 Space Capsule: Smart Mobile House for Eco-Friendly Living
- ✅ Futuristic design – Sleek and modern, stands out in any landscape.
- ✅ Durable, high-quality materials – Steel frame built to exceed industry standards.
- ✅ Smart and comfortable – Integrated lighting, ventilation, and insulation for year-round use.
- ✅ Modular and scalable – Easily installed across terrains from mountain slopes to beachside resorts.
| 编号 | 中文描述 | English Description | 参数 | Specification |
|---|---|---|---|---|
| 1 | 产品型号 | Product Model | E5&E7 | E5&E7 |
| 2 | 外部尺寸 | External Dimensions | E5:8500mm 长 × 3300mm 宽 × 3200mm 高 | E5:8500mm long × 3300mm wide × 3200mm high |
| E7:11500mm 长 × 3300mm 宽 × 3200mm 高 | E7:11500mm long × 3300mm wide × 3200mm high | |||
| 3 | 占地面积 | Land Occupation Area | E5:28㎡ E7:38.0㎡ | E5:28㎡ E7:38.0㎡ |
| 4 | 适用人数 | Number of Occupants | E5:2人 E7:2-4人 | E5: 2 people E7: 2-4 people |
| 5 | 最大功率 | Maximum Power | 10KW（无地暖）/15KW（有地暖） | 10KW (without underfloor heating)/15KW (with underfloor heating) |
| 6 | 总重量 | Approximately Total Weight | E5:7.5吨 E7:8 吨 (以实际为准) | E5:7.5 tons E7:8 tons (Subject to actual conditions) |
| 7 | 钢结构框架 | Steel Structure Frame | 钢结构 | Steel structure |
| 8 | 外墙板 | Exterior Panel | 2.0mm 航空铝板 | 2.0mm aviation aluminum |
| 9 | 保温层 | Thermal Insulation | 70mm 聚氨酯保温层 | 70mm polyurethane insulation layer |
| 10 | 外墙玻璃 | External Wall Glass | 6+18A+6 中空 LOW-E 玻璃 | 6+18A+6 hollow LOW-E glass |
| 11 | 外壳表面处理 | Shell Surface Treatment | 高性能金属氟碳烤漆 | High-attribute metal fluorocarbon paint baking paint |
| 12 | 阳台 | Balcony | 全景阳台（10mm 钢化玻璃） | Panoramic Balcony (10mm tempered glass) |
| 13 | 外围灯带 | Peripheral Light Strip | 15mm, 48W 硅胶 LED 防水节能灯带 | 15mm, 48W silicone LED waterproof energy-saving light strip |
| 14 | 入户门 | Entrance Door | 定制隔热隔音钢制防盗门，智能刷卡锁 | Customized insulated and soundproof steel anti-theft door, smart card swiping lock |
| 15 | 天花板 | Ceiling | 2.0mm 航空铝板全包 | 2.0mm aviation aluminum plate full package |
| 16 | 墙面 | Wall Surface | 10mm 0Bs 板 + 8mm 木饰面 | 10mm 0Bs board + 8mm wood veneer |
| 17 | 地板 | Flooring | 12mm 高级复合木锁扣地板 | 12mm Premium composite wood lock flooring |
| 18 | 室内照明效果 | Indoor Lighting Effect | 15mm, 48W 硅胶灯，3000K 暖黄光 | 15mm, 48W silicone lamp, 3000K warm yellow light |
| 19 | 户外照明效果 | Outdoor Lighting Effect | 15mm, 48W 硅胶灯，4000K 暖白光 | 15mm, 48W silicone lamp, 4000K warm white light |
| 20 | 窗帘+轨道 | Curtain + Track | 智能窗帘轨道及灯光系统 | Intelligent curtain track and lighting system |
| 21 | 卫生间隐私门 | Toilet Privacy Door | 极窄镁铝合金磨砂钢化玻璃门 | Extremely narrow magnesium-aluminum alloy frosted tempered glass door |
| 22 | 马桶 | Toilet | 普通陶瓷/智能马桶 | Ordinary ceramic/smart toilet |
| 23 | 淋浴喷头 | Shower Head | 精致冷热喷头 | Exquisite cold and hot nozzles |
| 24 | 洗脸盆 | Basin | 浴室柜，台下盆，镜柜 | Bathroom cabinet, under-table basin, mirror box |
| 25 | 毛巾架 | Hanger Towel Rack | 60×30mm 挂衣毛巾架 | 60×30mm clothes hanger towel rack |
| 26 | 水龙头 | Faucet | 精致冷热水龙头 | Exquisite hot and cold faucets |
| 27 | 空调 | Air-conditioning | 变频冷暖空调(美的) | Variable frequency heating and cooling air conditioning（Midea） |
| 28 | 电源系统 | Electricity Intake | 插卡取电 + 手动控制开关 | Card insertion and power extraction + manual control switch |
| 29 | 热水器 | Water Heater | 50L 储水式热水器 | 50L bucket water heater |
| 30 | 智能家居语音系统（可选） | Smart Home Voice System (Optional) | 可控制室内/户外灯光、窗帘、空调 | Manual control (can control indoor/outdoor light strips, indoor lights, curtains, air conditioning) |
| 31 | 全屋给排水保温防护系统 | Whole House Water Supply and Drainage Insulation Protection System | 伴热、保温棉 | Heat tracing, insulation cotton |
| 33 | 支撑脚 | Kickstand | 国标钛钢，固定脚高 200mm | National standard titanium steel, fixed foot support height of 200mm |
Note: Standard E5 model does not include kitchen and its cabinet.
🛡️ External Protection Structure
| Component | Description |
|---|---|
| Structural Frame | Integrated galvanized steel frame (80×80×3.0 mm & 100x150x4.0 mm hot-dip galvanized steel pipes) |
| Outer Shell | Fluorocarbon aviation aluminum alloy (2.0 mm high-temp fluorocarbon aluminum panels) |
| Insulation Layer | Waterproof, thermal, and moisture-resistant system (100 mm polyurethane foam) |
| Doors & Windows | Premium aluminum system windows and doors (85 series, 6mm+12A+6mm Low-E tempered glass, OTA hardware) |
| Substructure Panels | OSB + Cement Board (9 mm formaldehyde-free OSB + 18 mm asbestos-free cement fiberboard) |
| Skylight Glass | Laminated insulating Low-E glass (6mm+12A+6mm+0.76PVB+6mm) |
| External Door | All-aluminum hinged door |
🏠 Interior Finishes
| Component | Description |
|---|---|
| Wall & Ceiling Panels | 8 mm carbon crystal board |
| Flooring | 12 mm reinforced solid wood composite flooring |
| Bathroom Door | 8 mm tempered privacy glass with ultra-narrow frame |
| Bathroom Wall & Floor | 8 mm carbon crystal wall panel + stone-plastic flooring |
| Sanitary Equipment | Custom washbasin / mirror cabinet / shower set (ARROW / JOMOO) |
| Smart Bathroom | Intelligent toilet, bathroom heater |
| Electrical System | Full-house wiring & lighting system |
| Plumbing System | Full water supply & drainage system (pipes, valves, floor drains) |
| Power Panel | Card-in power control / auto power-off panel |
🧠 Smart Home
| Device | Brand / Quantity |
|---|---|
| Central Air Conditioner | 1 sets (Midea / Hisense / Xiaomi inverter cooling & heating) |
| Smart Lock | Standard Configuration |
VR & Video Showcase
With **100 E5 capsules in production**, we’re supplying some of China’s top tourism destinations. We’re now seeking global partners to introduce this innovative solution to international markets.Coming soon: More creative models including Apple Cabins, Mobile Kitchens, and Modular Living Spaces – all crafted to elevate the cultural tourism experience.
Partner With Us: Factory Tour & Contact
Located in Qingzhou City, Shandong Province, China, our factory is fully operational and ready for visits. If you’re attending the upcoming Canton Fair, we welcome you to come explore partnership opportunities.
Contact Info:
WhatsApp/WeChat: +86 19906365856
Email: roryshanshan@gmail.com
Let’s shape the future of cultural tourism and outdoor lodging together! 🌍
